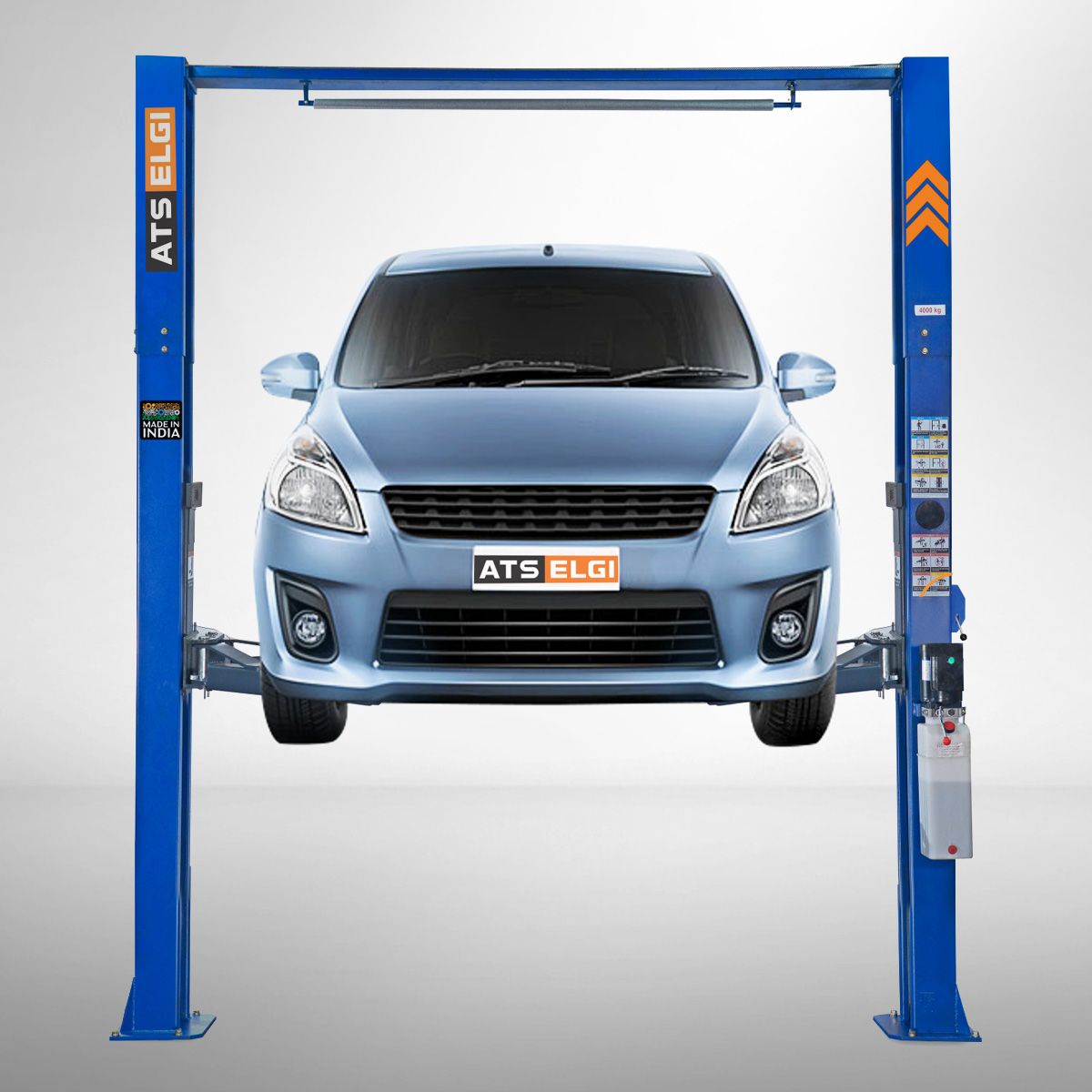

Two Post Hydraulic Lift Single Point Lock Release


As a market leader holding almost 65% market share in India for Two post lifts segment. Hydraulic two post lift is our front end warrior and prime sales driver. In-order to strength our hold and technological advantage in market, we are glad to introduce additional feature of “Single point lock release system” with our Hydraulic two post lifts- 4 Ton Lifting Capacity.

Model: Single Point Lock Release

Product FeaturesAdvantagesSpecificationsDownloadsRequest a Quote
  • Pneumatically operated system.
  • Eliminates Manual intervention for unlocking
  • Ensures double safety- Avoids human error occurring due to manual lock release. Unlike manual method, lift can be locked at any position with single point lock release.
  • Base free design makes working beneath the vehicle easy.
  • True symmetric column design
  • Arm restraints on each arm engages when the vehicle is lifted
  • Pneumatically operated Single point lock release system ensures additional safety.
  • Two full stroke cylinders, one in each column
  • Rubber door- opening protection
  • Telescopic arm pads for quick and easy vehicle contact.
Lifting Capacity 4000 kgs
Lifting Time (Approx) 55 +/- 5 Sec
Lowering Time (Approx) 45 +/- 5 Sec
Max. Lifting Height (No Load) 1800 mm
Min. Lifting Height (No Load) 115 +/- 10 mm
Drive Through Width 2554 mm
Column Height 3777 mm
Oil Tank Capacity 12 Liters
Motor Power 3 Hp. 3 PH 2850 RPM
Frequency 50 +/- 5%
Power Supply 415 V
Overall Dim (LxWxH) (Approx) 3777 x 3320 x 520 mm
Lowering Mode Single Point Lock Release
-Pneumatically operated
