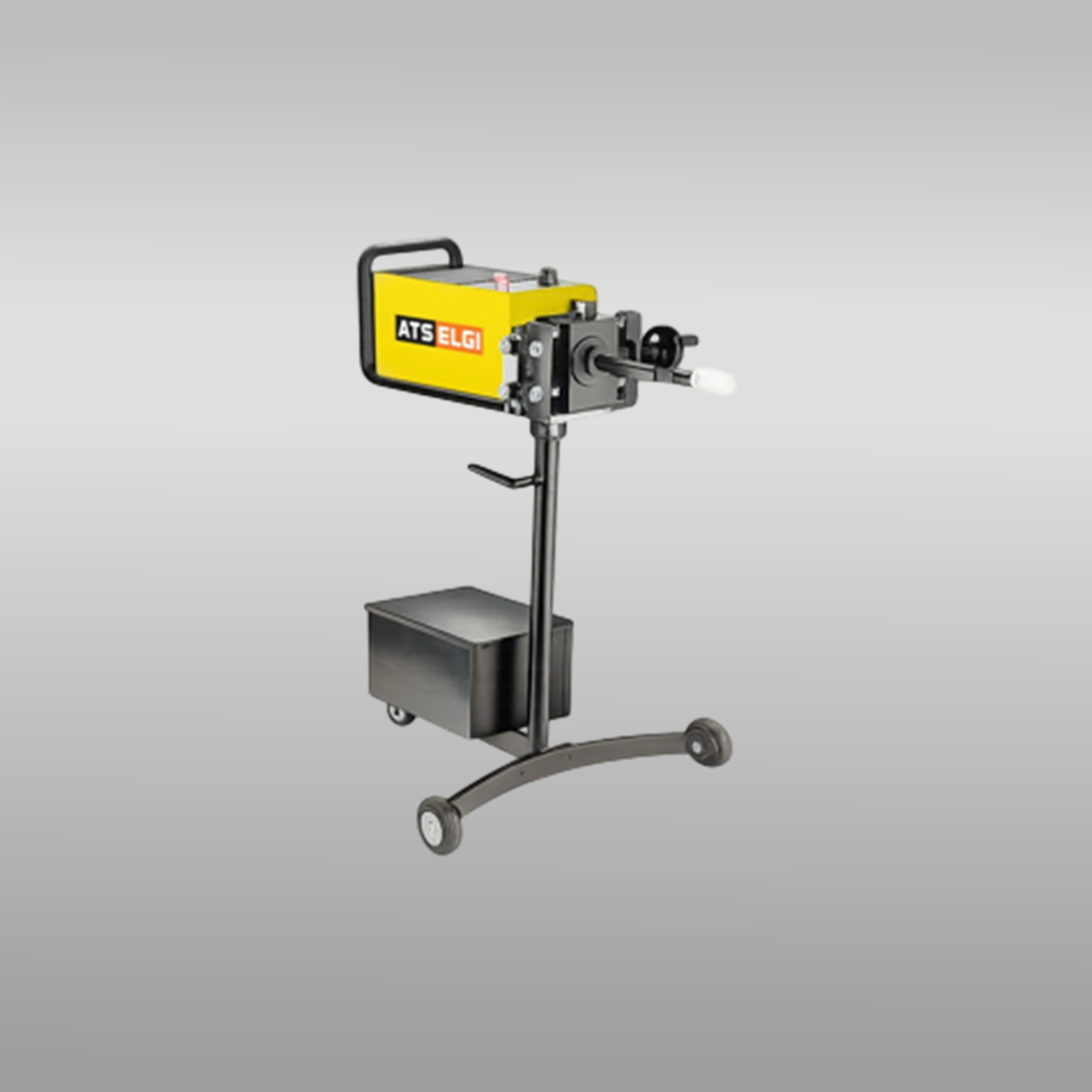

ON/OFF CAR BRAKE LATHE
ON/OFF CAR Brake Lathe is the most effective equipment which can skim the Brake Discs of PV Vehicles.
The On/OFF car disc aligner is the most effective equipment to sort out brake disc alignment problems. It eliminates all disadvantages of cast iron brake discs and the influence on materials by simply and lightly cutting down the surface of the disc at both sides simultaneously. Use OFF car functions where the wheels are not moved while parking / lifting i.e. EV models. Automatic functions where the cutting tool can move automatically once the setting has bean done. Automatic functions where the cutting tool can move automatically once the setting has bean done. Rear wheel attachment easy to mount.
ON/OFF CAR BRAKE LATHE model having the dual function where we can do both ON / OFF Car, as per the current scenario most of the car manufactures are having ICE / EV models cars for service in the same workshops, where the EV models the wheels are not moved when the vehicle is ideal condition hence this model is more suitable, and customer can use single machine for both a functions
| Parameter | Data |
|---|---|
| Drive speed | 150 rpm |
| Motor Power | 750W |
| Working Height Min/Max | 0.78/1.2M |
| Electrical specification | 220V/50Hz 110V/60Hz |
| Ambient temperature range | -30 °C to 60 °C |
| Max. Dia of Brake disc | 500mm |
| Thickness of Brake disc | 6-40mm |
| Cutting depth per knob | 0.005-0.015mm |
| Cutting Precision | ≤0.00 – 0.003 |
| Brake disc surface roughness Ra | 1.5 – 2.0μm |
| Packing size total | 0.33 CBM in two cartons |
| Plywood carton | 86*48*45cm = 0.18m³ |
| Paper carton | 91*51*31cm = 0.144m³ |
| Net Weight | 118kg in two carton |
| Gross Weight | 128kg in two carton |
- Performs disc skimming directly on the vehicle without removing the disc ON Car Position.
- Performs disc skimming directly on the Machine OFF car position.
- Simple, user-friendly operation with no complicated components.
- Does not require highly skilled labour to operate.
- Compact design minimizes workspace requirements.
- Portable and easy to move between work areas.
- 2-in-1 On-Car and Off Car Brake Lathe
- Accurately resurface automotive & Brake rotors
- Fast, one-cut brake service
- Long Blade life cycle
- Affordable alternative
