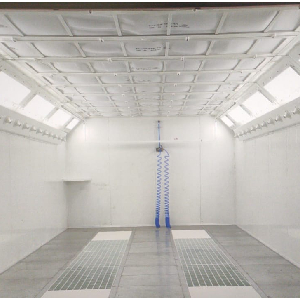

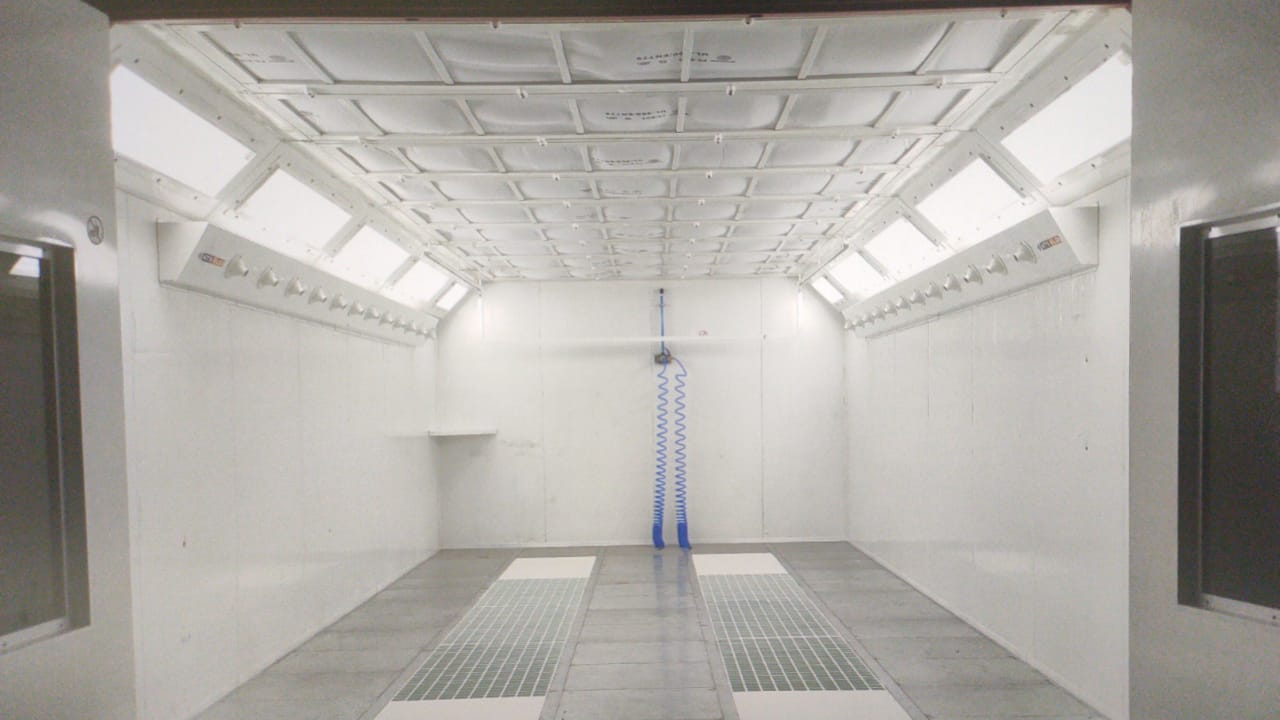

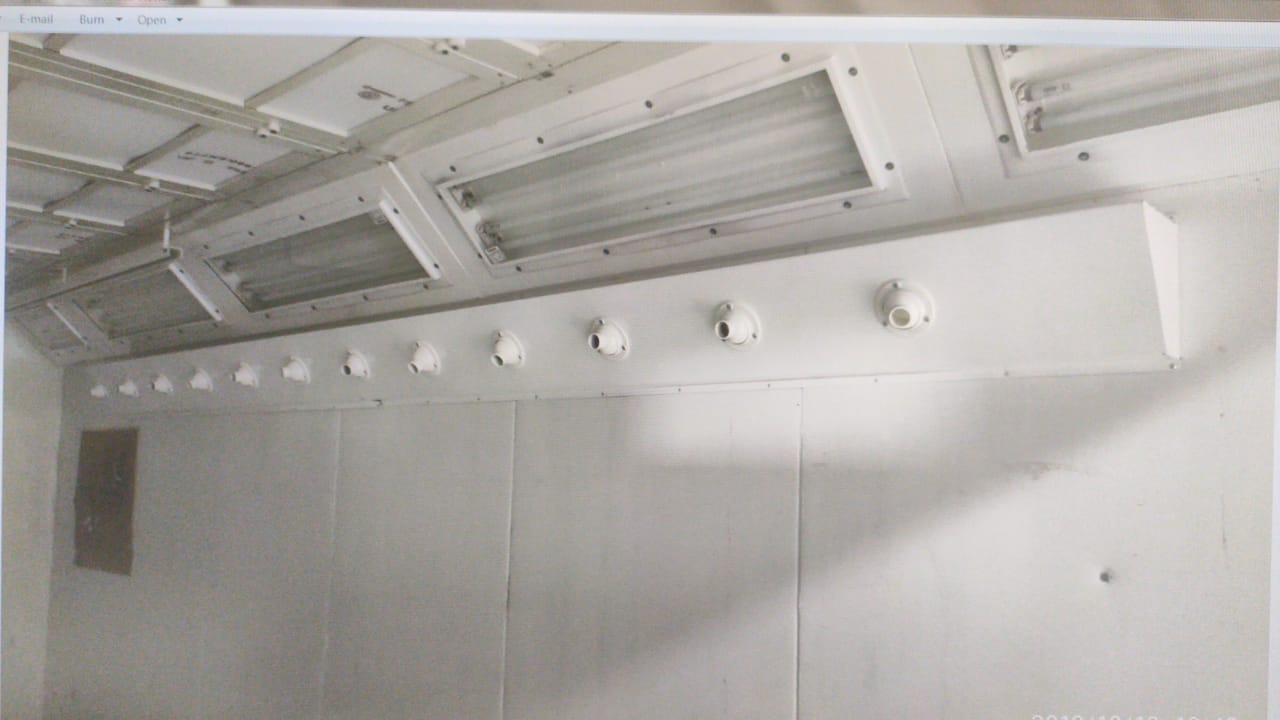

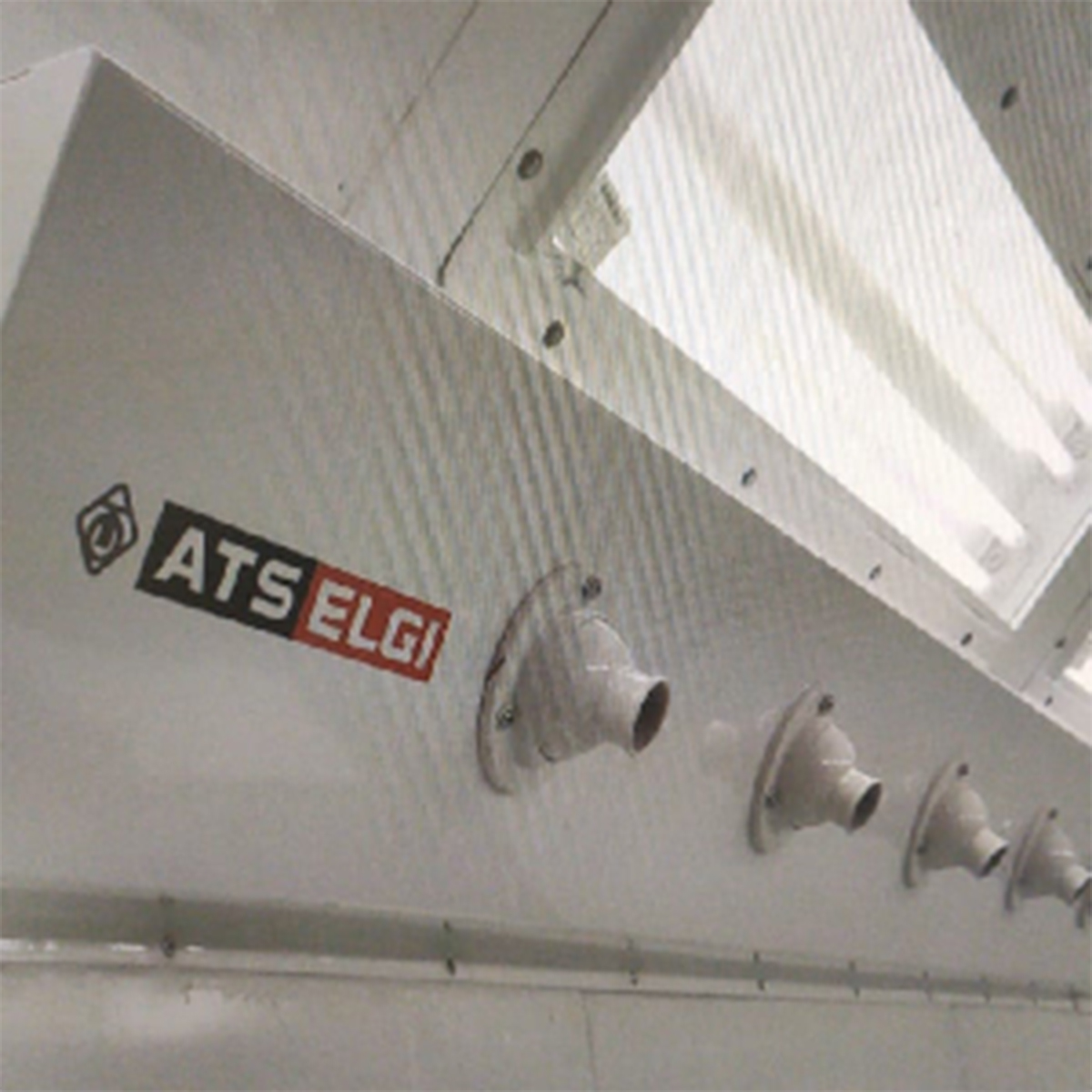

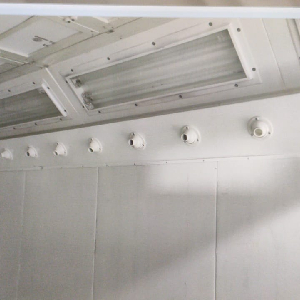

SOLUTIONS FOR DRYING WATER BORNE PAINTS

There is obvious drift in the automotive paints from the usage of solvent borne paints to water borne paints . Although the water borne paints reduces VOC (volatile organic compound) emissions , but it takes longer drying time than solvent based paints. ATS ELGI smart dry reduces the drying time of water borne paints by creating a turbulent air flow on the painted surface which breaks down the slow moving boundary air and quickens the drying process.

Model : Horizontal Velocity Dry

ApplicationsFeatures & BenefitsSpecificationsRequest a Quote

Drying of water borne paints

Low Power Consumption – 0.25 kw/each tower
Automatic opening & closing of doors
Certified Flame Proof Motor
10 Micron pocket filters
Can be integrated with any models of paint booth
Better finish

S.No	Specifications	SmartDry
1	Overall dimensions (L XB X H)	500 X 425 X 2075 mm
2	Input Supply	3 Phase, 415 V , 50 Hz
3	No. of Nozzles	8
4	Air Flow / Nozzle	59 CFM
5	Average air velocity / Nozzle	21.4 m/s
6	Filter media size	10 Micron
7	Impeller type	Centrifugal with backward curve
8	Type of motor	Flame proof
9	Motor Power	0.25 KW
10	Required air pressure	3-5 kg/cm²
11	Working temperature	0 to 90ºC
12	Weight (Approx.)	74 kg
